3.7V Lithium Battery Cable Tester - Network Line Tester with LCD Display for RJ45/Phone Wires, Portable Wire Detector Tool

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	RONGCE

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM, OBM
Material:	ABS+ELECTRONIC	Color:	OTHER
Power:	Battery	Storage Temperature:	14~122°F (-10~50°C)
Application:	PoE Splitter	Cable Length Measurement Range:	2~500m
Use:	Network Line Finder Line Finder	Low Pressure Tips:	3.5v+/-0.1v
Network:	Wifi, Wireless Lan, Wired LAN	Power:	3.7v 1400mAh Lithium Battery
LCD Display:	128*64 Dot-matrix With Backlight	Wiremap Cable Type:	CAT5,CAT6 (STP & UTP)
NCV:	AC 70V~1000V 50/60Hz

3.7V Lithium Battery Cable Tester - Network Line Tester with LCD Display for RJ45/Phone Wires, Portable Wire Detector Tool

Product Overview

Feature

1.Dual scan modes selectable: AC filter & Non AC filter.
2.Detect AC voltage presence (70V-1000V).
3.Test physical status for STP, UTP lan cable.
4.Measure cable length accurately , the range is 500m.
5.Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
6.PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).
7.Quallity verify the crimping crystal.

Specification

Material	ABS
Package Weight	460g / 16.23oz
Package Size	23 * 16.5 * 4.5cm / 9.06 * 6.50 * 1.77in
LCD Display	128*64 dot-matrix with backlight
Power Supply	3.7v 1400mAh lithium battery
Auto-off Time	15min/30min/60min/OFF
Voltage Protection	DC48V, 5mA
Max. Working Current	<150mA

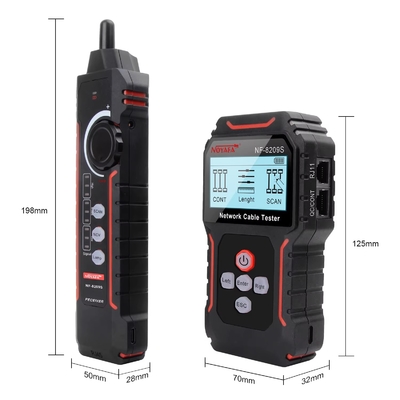

Size	125 * 70 * 32mm / 4.92 * 2.76 * 1.26in
Cable Type	CAT5, CAT6, (STP & UTP)
Test with Switch Directly	Yes
Max. Range	600m
