Name: Factory temperature and humid transmitter high-precision industrial grade pipeline sensor 4-20mA current transmitter metal shell
Brand: Guangzhou Qingmai Electronics Co., Ltd.
Availability: InStock

Home Products Temperature and humidity transmitter/sensor probe

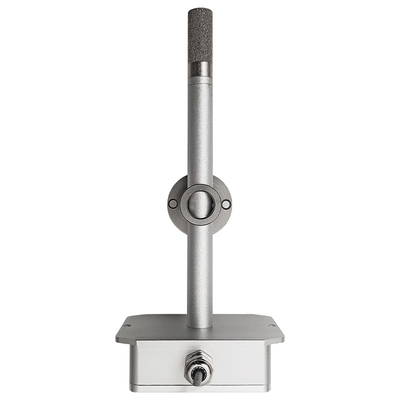

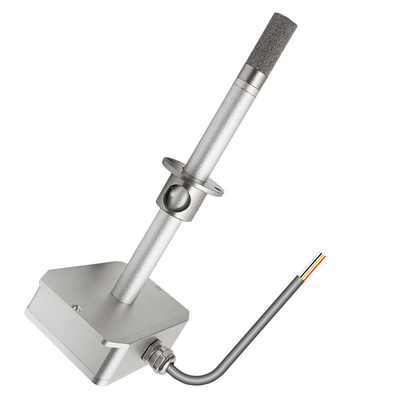

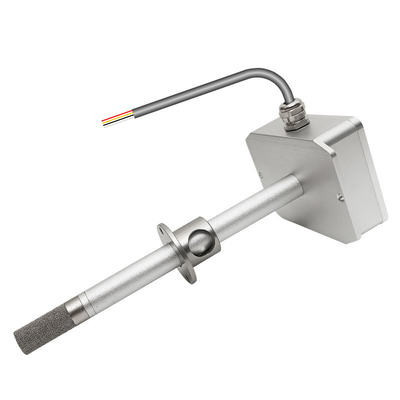

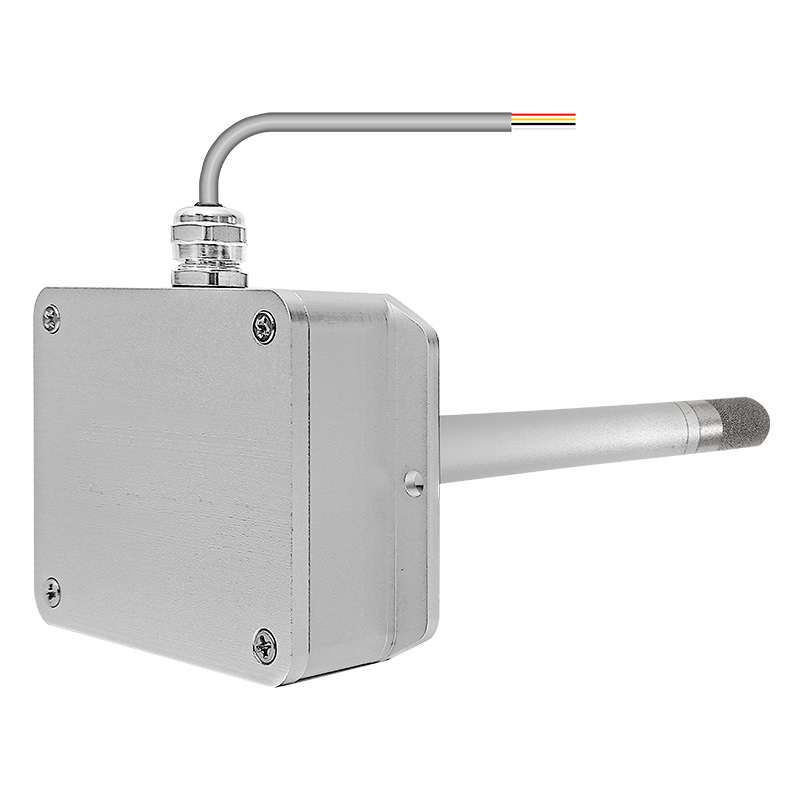

Factory temperature and humid transmitter high-precision industrial grade pipeline sensor 4-20mA current transmitter metal shell

Product Details:

Contact Now

Detailed Product Description

系列:	电流变送器	特征:	金属表壳
安装类型:	风管安装	描述:	法兰固定
型号:	FG7020A, FG7020A	种类:	电流互感器
原产地:	Guangdong, China	品牌:	RONGCE
用途:	温度和湿度检测器	原理:	电容式传感器
输出:	4-20ma	品名:	变送器电流
供应商类型:	工厂贸易	准确度:	± 0.5, ± 3% RH
电源:	15-24V	应用程序:	变送器电流
重量:	0.5KG	颜色:	银灰色
材料:	金属表壳	证书:	CE FCC RoHS
电源电压:	15 ~ 24V

FG7020A Temperature of transmitter module Voltage output This product adopts a capacitive digital senor to convert the temperature and humidity in the environment into a corresponding standard signal. It has long term stability,fast response speed and strong resistance to chemical pollution , small size,wide measurement range,and high accuracy.

Model:	FG7020A
Name:	Current transmitter sensor
Power supply voltage:	15-24V DC, power consumption<5W
Working temperature:	0-50 ℃ (four range optional)
Working humidity:	0-99.9% RH
Measurement parameters:	± 0.5 ℃, ± 3% RH (25 ℃ 60% RH),
Resolution:	0.1 ℃, 0.1% RH
Output signal:	Current type 4-20mA
Lead length:	40-60CM (lead length can be customized according to needs)

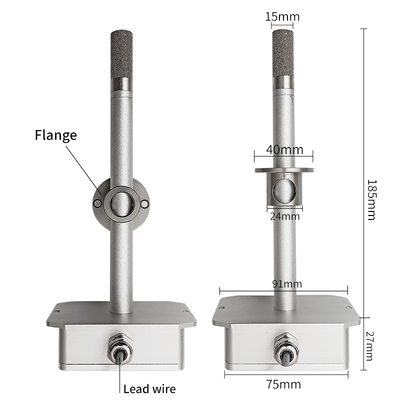

Installation method:	Air duct installation (installation method can be customized according to needs)
Certificate	CE FCC ROHS

Temperature range selection:
The temperature range selected for the dial switch is 0~50 ℃ (default)
The temperature range selected for the dial switch is -20~80 ℃
The temperature range selected for the dial switch is -40~60 ℃
The temperature range selected for the dial switch is -40~120 ℃
Note: Before selecting the measurement range operation, please turn off the power supply of the transmitter.

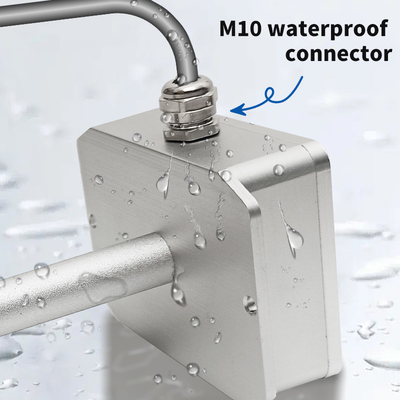

Product features: Explosion proof pipeline Temperature and humidity transmitter Voltage/current/485 signal output/high-precision imported sensor Imported sensors Adopting imported sensor measurement unit and high-strength metal sintered filter cap Can filter out dust while ensuring high humidity air circulation Dustproof and breathable/minimal drift/fearless of condensation Metal shell, high temperature and explosion-proof The aluminum alloy metal shell has undergone oxidation and electrolytic treatment, and the shell is non-conductive Dustproof, corrosion-resistant, anti pollution, anti-interference, etc Temperature range "optional" The dip switch can set the range of the temperature and humidity transmitter Widely used Widely used in computer rooms, warehouses, weather stations, substations, cold storage, greenhouses, museums, archives, automated buildings and other fields. Four major advantages: dust-proof filtration/high anti-interference/diverse installation/customized cable length
