Name: Dew Point Instrument Transmitter Laboratory Farm air Dew Point Instrument Sensor Detection 485 Current Dryer Collection
Brand: Guangzhou Qingmai Electronics Co., Ltd.
Availability: InStock

Home Products Temperature and humidity transmitter/sensor probe

Dew Point Instrument Transmitter Laboratory Farm air Dew Point Instrument Sensor Detection 485 Current Dryer Collection

Product Details:

Contact Now

Detailed Product Description

保修期:	3年	类型:	低温露点变送器
支持定做:	OEM, ODM, OBM, 软件再工程	原产地:	Guangdong, China
品牌:	RONGCE	型号:	QMLD-1
动力:	露点变送器-新型聚合物薄膜传感器	材料:	不锈钢探头外壳
产品名称:	维萨拉露点分析仪	测量范围:	-60 ~ + 20 ℃ Td (标准)
应用温度范围:	-20-70 °C	露点精度:	± 2 ° Ctd
输出:	4-20mA	用法:	测量露点值
颜色:	黑色	尺寸:	120 * 27mm
电源:	12-24V/30mA	证书:	CE ROHS

Domestic dew point sensor LD1-485/20
Thermosetting polymer sensitive capacitor

Name	Dew Point Transmitter
Dew point measurement range	-60~20 ° Ctd (standard)
Application temperature range	-20~70 ° C
Dewpoint accuracy (air or nitrogen)	± 2 ° Ctd (standard)
Response time [63% (90%), gas temperature 20 ° C, pressure 1 bar]	-40->-30 ° Ctd: 20 seconds (40 seconds) -30->-40 ° Ctd: 5 minutes (20 minutes)
Output mode (range adjustable)	Current output 4~20mA (three wire system) Corresponding to -80~20 ° Ctd (standard)
Current output temperature drift	0.01% of span/° C
Current output resolution	0.002mA
Current output load	<500ohm
Power supply	12~24V/30mA
Working temperature	-20~70 ° C
Storage temperature	-30~80 ° C
Relative humidity of working environment	0~95% RH
Working environment sample gas flow rate	>1L/min
Work environment pressure	0~50bar

1. Dew Point Transmitter - New Polymer Thin Film Sensor Technology

2. High precision chip/stable anti-interference/protection level IP65

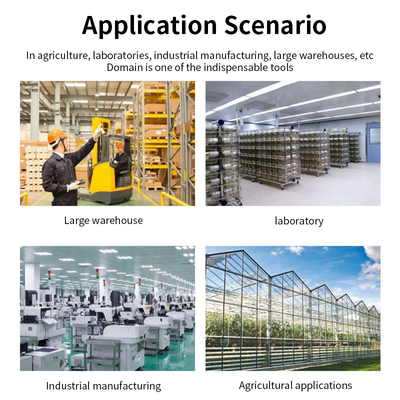

3. Application scenarios
In large warehouses, agriculture, laboratories, industrial manufacturing, large warehouses, etc

4. Thermosetting polymer polymer sensitive capacitor
The low humidity sensitivity should exceed that of ordinary humidity sensitive capacitors by more than a hundred times

5. The sensor uses a humidity sensitive capacitor as the core component, which can sense the moisture content of air in extremely low humidity. After multi-point compression and temperature correction, it ensures the reliability of the test,
Accurate measurement results are available in various environments, which are then converted into current signal outputs.

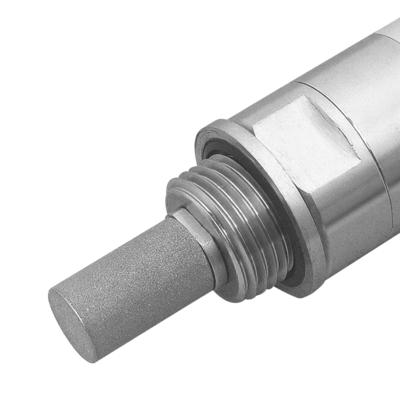

6. Stainless steel probe housing
Waterproof and dustproof, high temperature resistance, corrosion resistance, good density, fast response speed
Low requirements for usage environment, IP65 protection level
Even in harsh environments, it can provide good protection

Stainless steel probe housing (default line length 1 meter)
