Name: Temperature and Humidity Sensor High Temperature Resistant Pipe Transmitter Industrial High Precision 4~20mA Current Output
Brand: Guangzhou Qingmai Electronics Co., Ltd.
Availability: InStock

Home Products Temperature and humidity transmitter/sensor probe

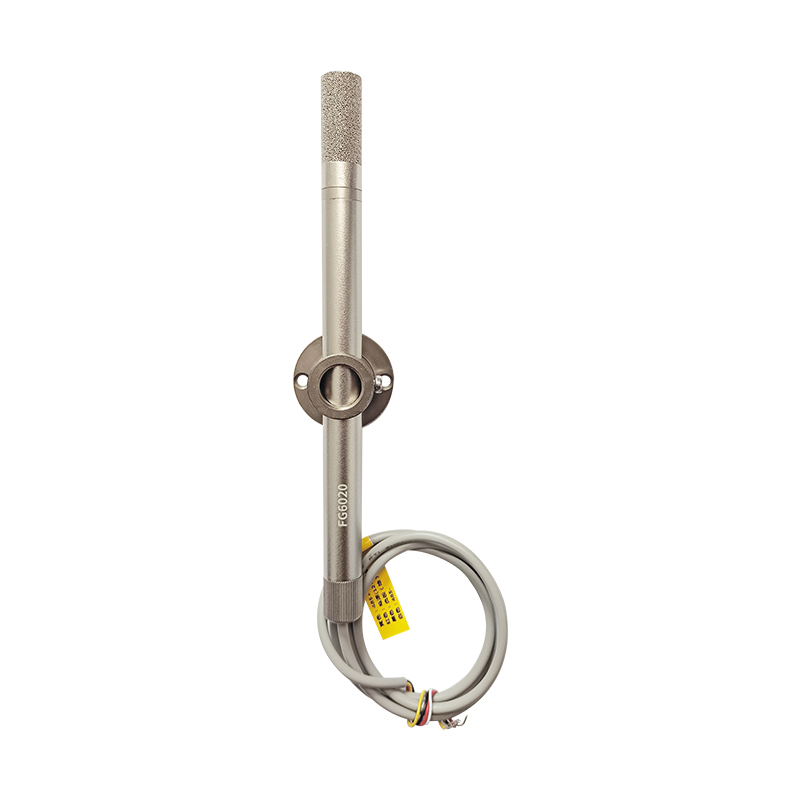

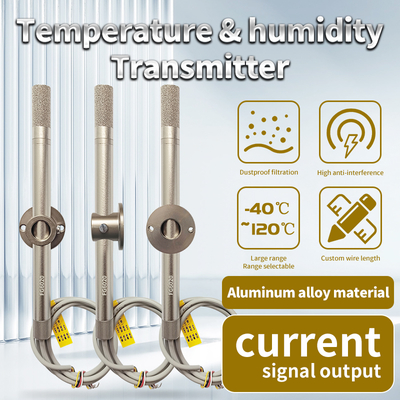

Temperature and Humidity Sensor High Temperature Resistant Pipe Transmitter Industrial High Precision 4~20mA Current Output

Product Details:

Contact Now

Detailed Product Description

系列:	一个标准	特征:	一个标准
安装类型:	法兰安装	描述:	一个标准
制造日期代码:	一个标准	型号:	FG6020
种类:	温度传感器	原产地:	Guangdong, China
品牌:	QINGMAI	用途:	温度传感器
原理:	电阻传感器	输出:	电流信号
品名:	温度传感器	产品外壳材料:	高温铝合金
温度范围:	0 ~ 50 ℃	湿度范围:	0 ~ 99.9% RH
测量误差:	± 0.5 °C/± 3% RH	尺寸:	200 * 15.7mm
电源:	AC12-24V/DC12-36V	准确度:	0.1% RH/0.1 °C
输出信号:	电流输出4-20mA	功耗:	<10mA
采样周期:	3S

Specification

item	value
Series	ONE-STANDARD
Features	ONE-STANDARD
Mounting Type	flange mounting
Description	ONE-STANDARD
Manufacturing Date Code	ONE-STANDARD
Model Number	FG6020
Type	Temperature Sensor
Place of Origin	China
	Guangdong
Brand Name	QINGMAI
Usage	Temperature Sensor
Theory	Resistance Sensor
Output	current signal
Description	Temperature Sensor

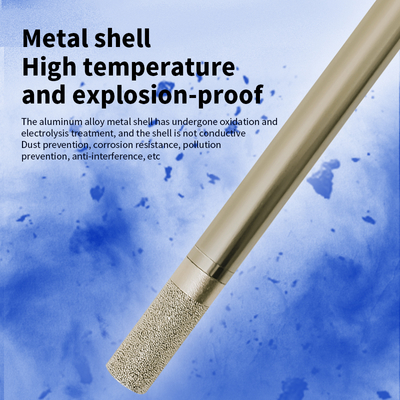

Product shell material	High temperature aluminum alloy
temperature range	0~ 50℃
humidity range	0~99.9%RH
measuring error	±0.5°C/±3%RH
Size	200*15.7mm
Power supply	AC12-24V/DC12-36V
Accuracy	0.1%RH/0.1°C
output signal	Current output 4-20mA
Power consumption	<10mA
The sampling period	3S

FG6010 voltage type temperature and humidity transmitter Adopting optoelectronic isolation technology Strong anti-interference stability, high temperature resistance, and corrosion resistance Good breathability, using gold-plated copper filter element dust cover Aluminum alloy shell undergoes oxidation and electrolysis of polymer materials Ensure no discoloration and non-conductive shell
